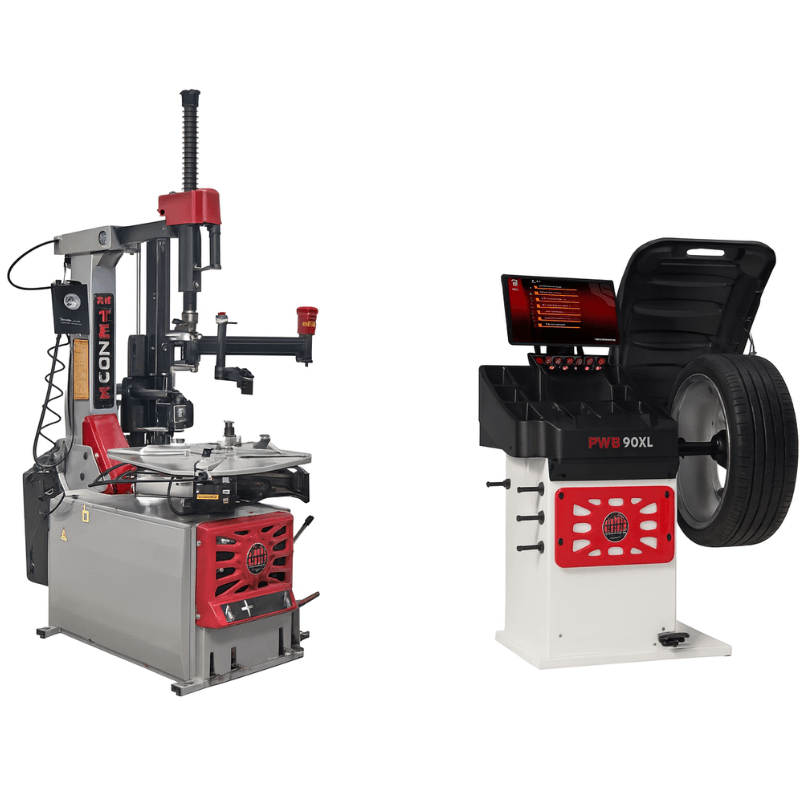

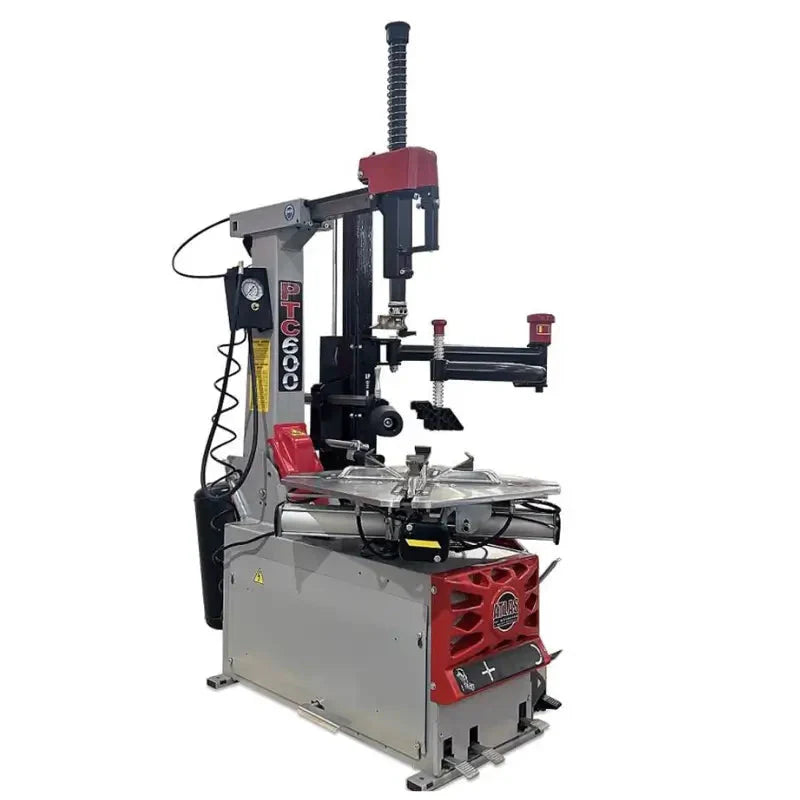

Platinum PTC600 Tire Changer & PWB90XL Wheel Balancer Combo
The Atlas Platinum PTC600 Tire Changer paired with the PWB90XL Wheel Balancer provides a complete, professional-grade setup for shops ready to elevate their tire service capabilities. Built with advanced Italian-engineered components, the PTC600 features a tilt-back design, pneumatic assist arm, air-powered jaws, and an integrated bead blaster—making tire mounting and removal faster, safer, and more efficient. Complementing it, the PWB90XL delivers precise balancing with super automatic 3D data entry, touchless sonar measurement, and a laser-guided weight placement system to minimize errors and maximize accuracy.
The PTC600 is equipped with a high-torque 110V turntable, up to 29" clamping capacity, and a durable anodized aluminum bead breaker cylinder for long-lasting performance. Its assist arm and bead roller work together to simplify even the most difficult tire applications, while the built-in bead blaster ensures consistent seating every time. On the balancing side, the PWB90XL stands out with advanced tools like Optimatch optimization software, self-calibration, and both static and dynamic balancing modes—delivering consistent, precise results with every cycle.
PTC600 Tire Changer Specifications
- External Clamping Range: 10" – 27"
- Internal Clamping Range: 12" – 29"
- Maximum Tire Diameter: 43"
- Maximum Wheel Width: 16"
- Turntable Speed: 7 RPM
- Bead Breaker Force: 6,924 lbs
- Air Requirement: 120–145 PSI
- Power Requirement: 110V
- Shipping Weight: 795 lbs
- Tilt-Back Pneumatic Column
- Italian-Engineered Components
PWB90XL Wheel Balancer Specifications
- Maximum Tire Diameter: 43"
- Rim Size (Cars & Light Trucks): 10" – 30"
- Rim Width: 1.5" – 20"
- Shaft Size: 40mm
- Maximum Wheel Weight: 165 lbs
- Balancing Speed: 130 RPM
- Data Entry: Super Automatic 3D
- Measurement Units: Standard or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4°
- Self-Calibration: Yes
- Cycle Time: 7 seconds
- Power Requirement: 110V
- Shipping Weight: 290 lbs

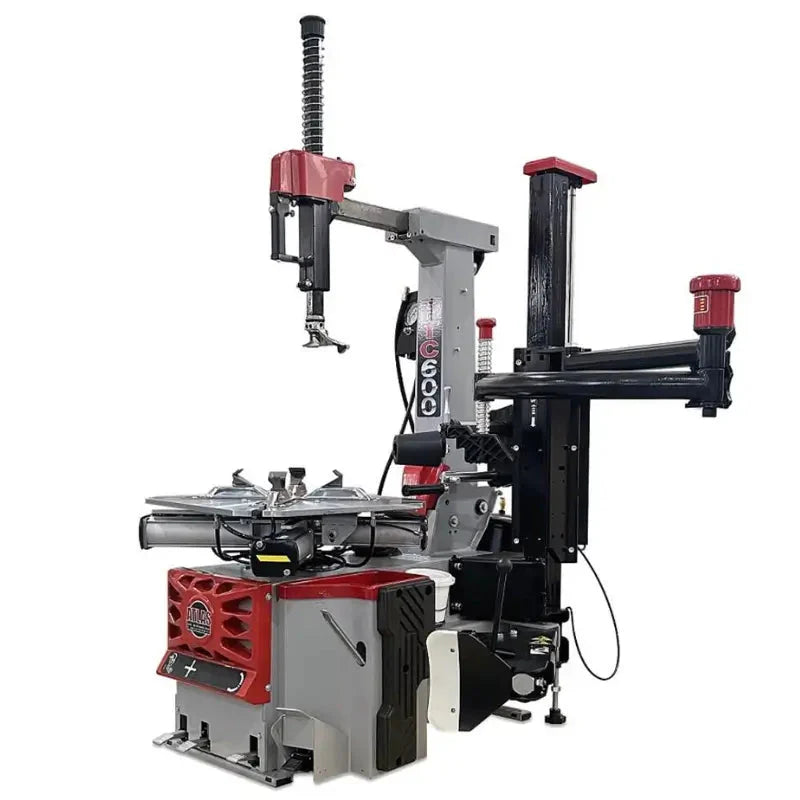

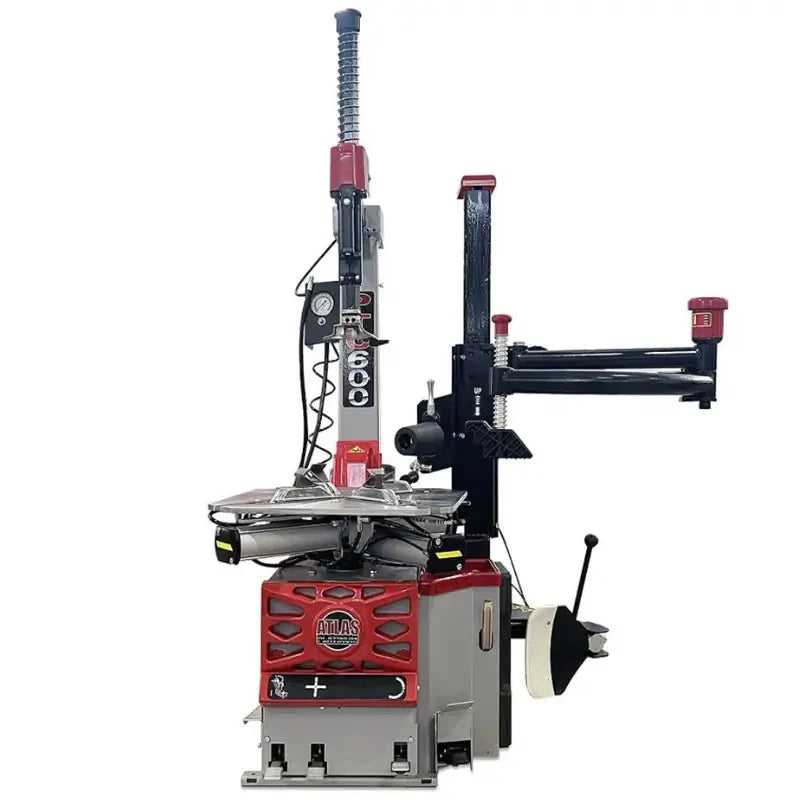

PTC600 Tire Changer – Key Features
- Tilt-back clamping system for safer, easier operation
- Right-hand assist arm for bead pressing and rolling
- Air-operated jaws and bead breaker
- High-torque 110V electric turntable
- Metal mount/demount head with replaceable plastic inserts
- Column-mounted inflator box with pressure gauge
- Integrated bead blaster for quick tire seating
- Includes filter, regulator, and lubricator (FRL) system
- Comes with tire tool, lube bucket, and brush
- Large plastic jaw protectors and bead breaker cover included
- Replacement plastic inserts provided
- Replacement parts readily available

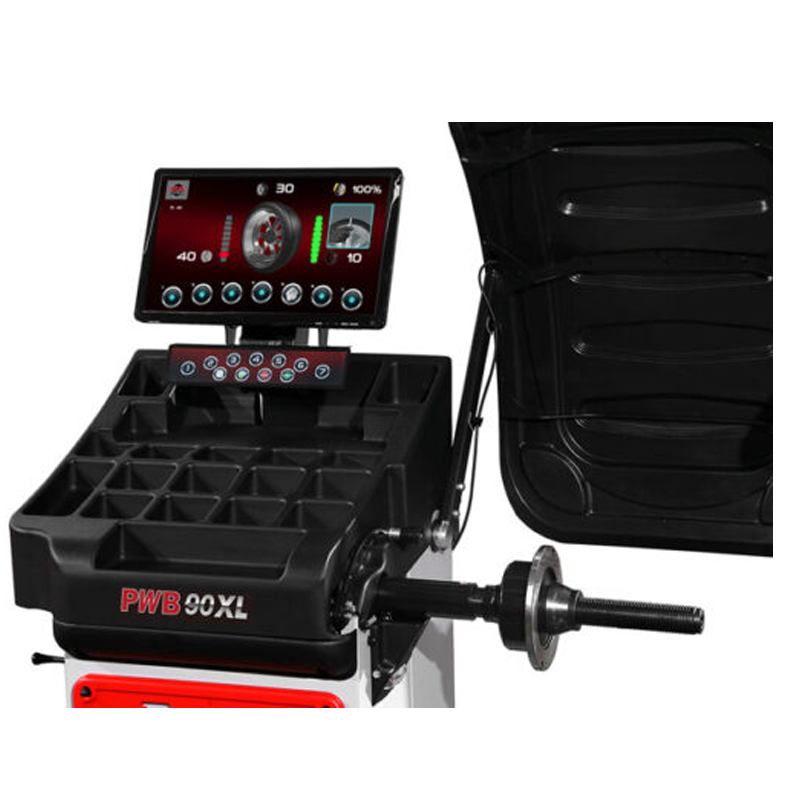

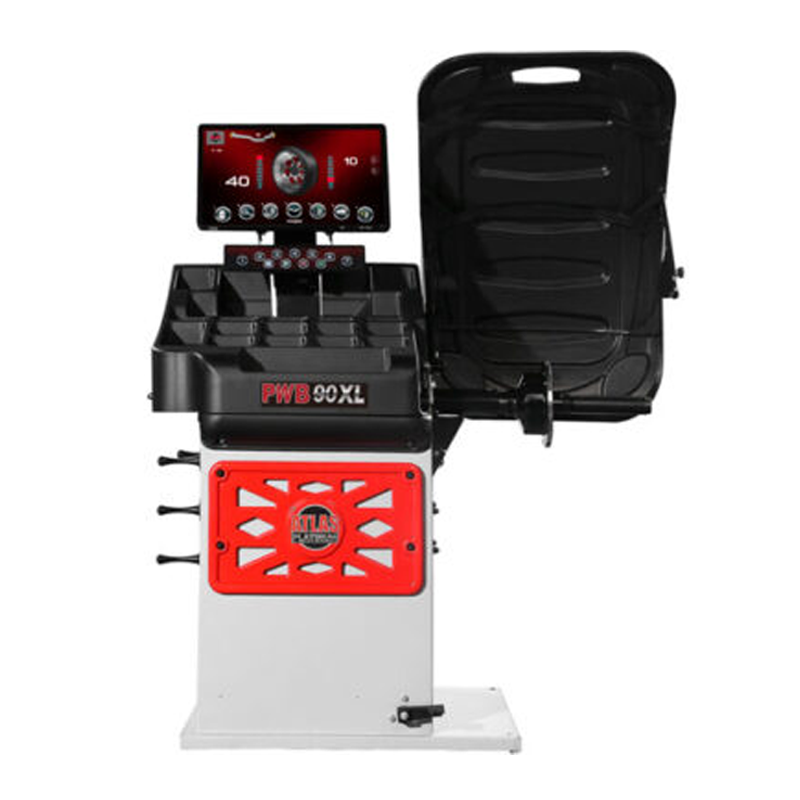

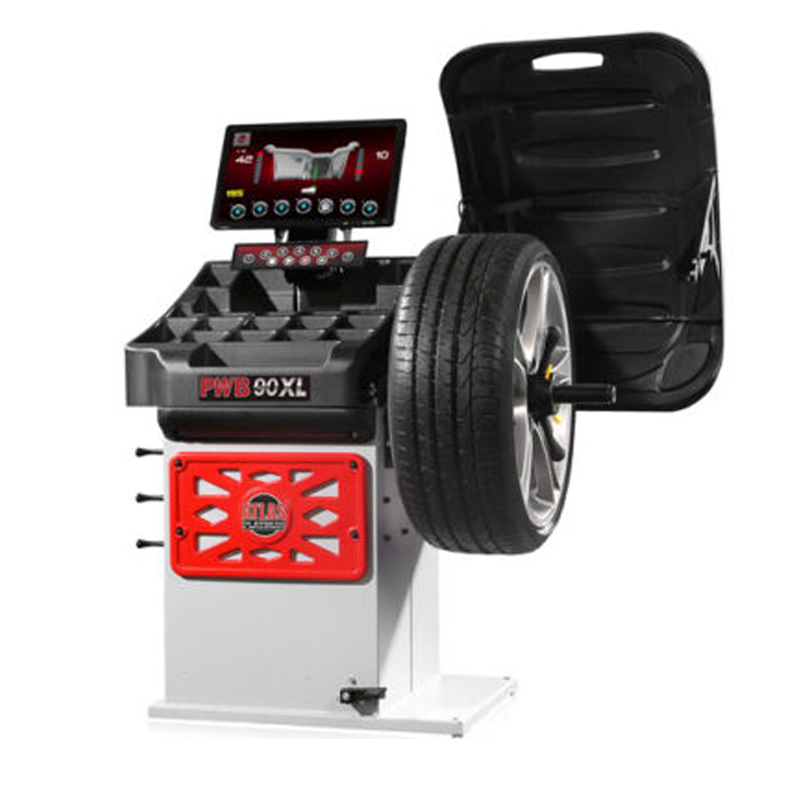

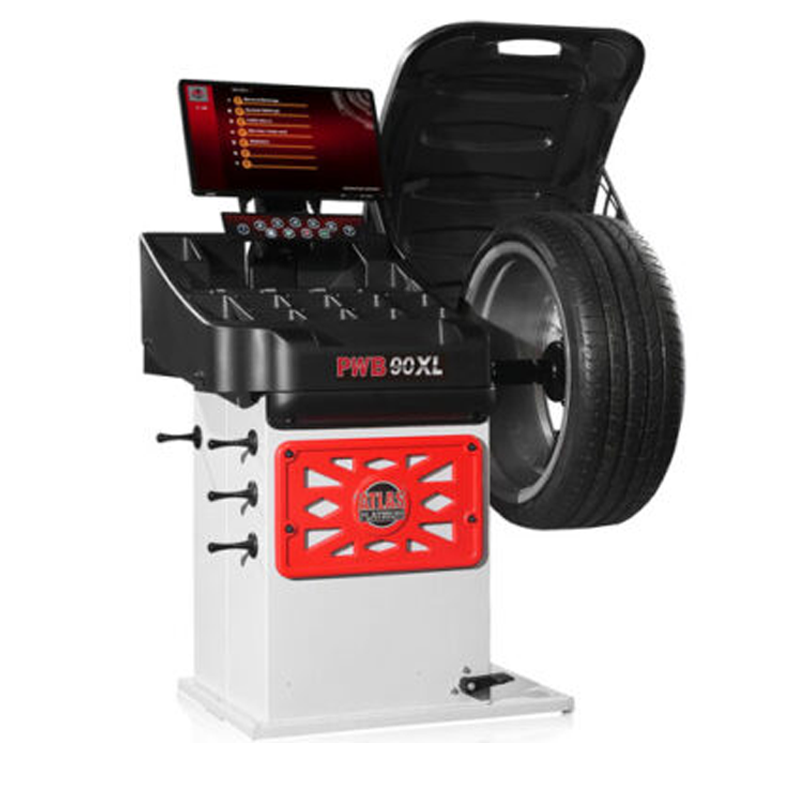

PWB90XL Wheel Balancer – Key Features
- Platinum 3D video motorized spin balancer
- Italian-engineered with premium components

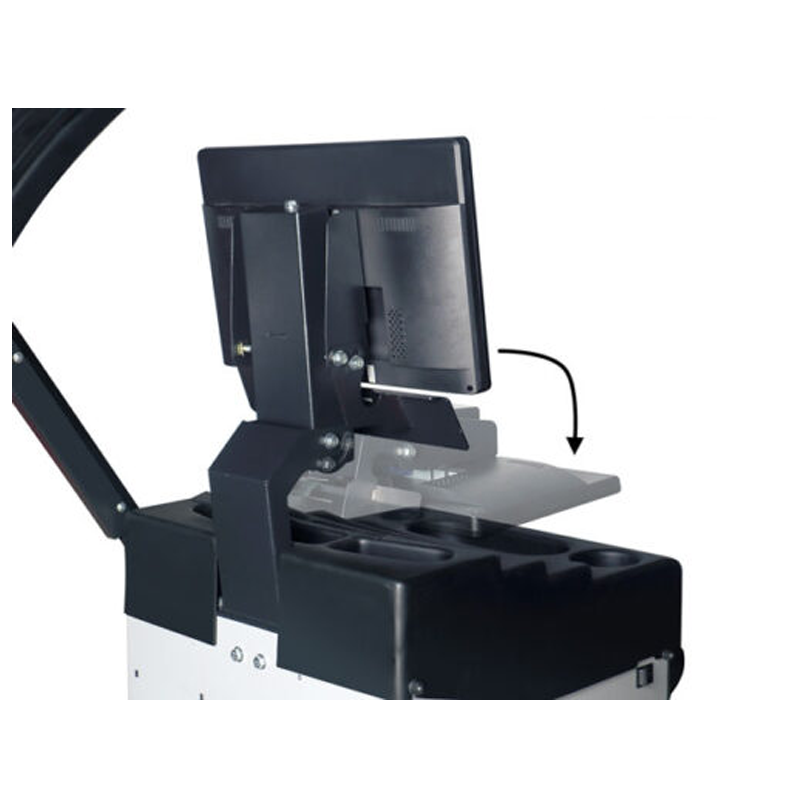

- High-resolution display monitor
- Super automatic 3D data entry with touchless sonar rim measurement
- Laser-guided weight placement system
- Integrated LED work light
- Static and dynamic balancing modes
- Optimatch, FES (Split), and OPF (Opposite Position) functions
- ALU-S and multiple ALU balancing programs
- NWN (No Wheel Needed) system
- Self-diagnosing and self-calibrating operation
- USB port for firmware updates
- Highly accurate imbalance detection between planes
- Displays measurements in grams/ounces and mm/inches
- No anchor-down installation required
- Includes quick-release nut, 4 centering cones, pliers, and calipers
- Replacement parts and wear items readily available
- Backed by a 2-year parts-only warranty
Optional Add-On (Sold Separately): Truck Adapter Set
